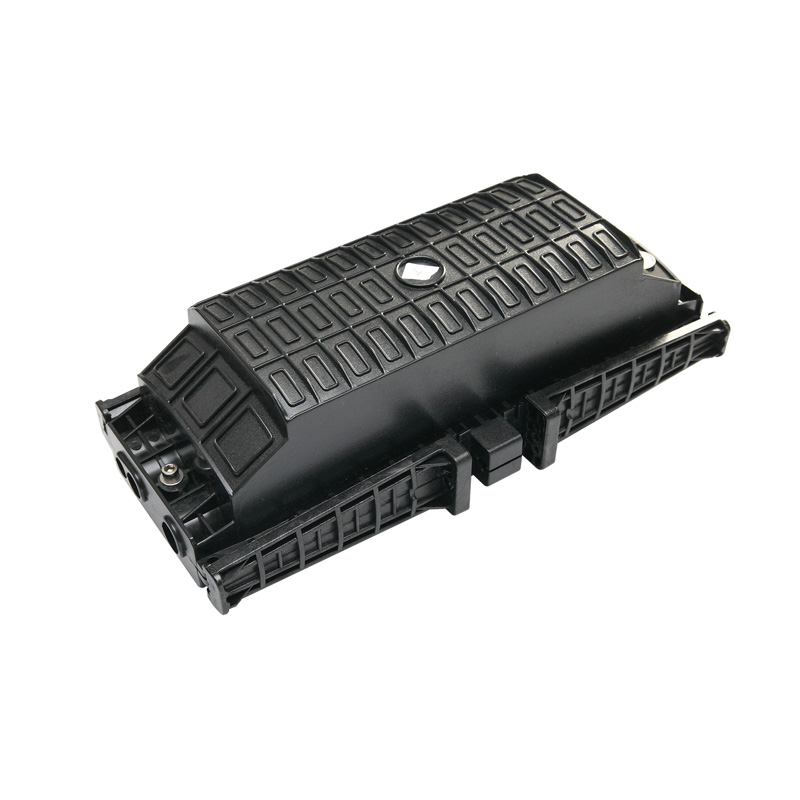

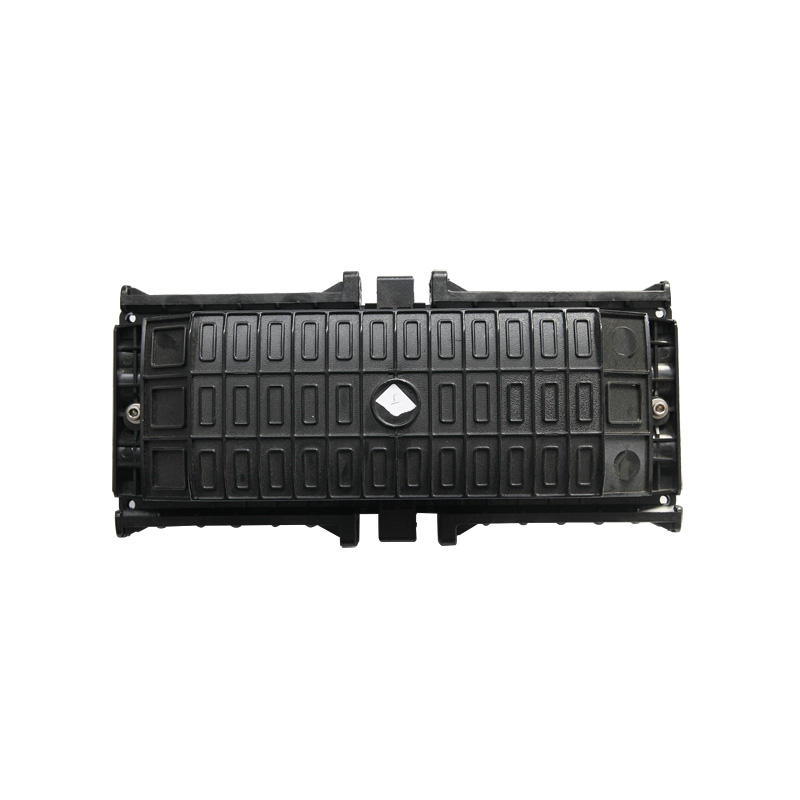

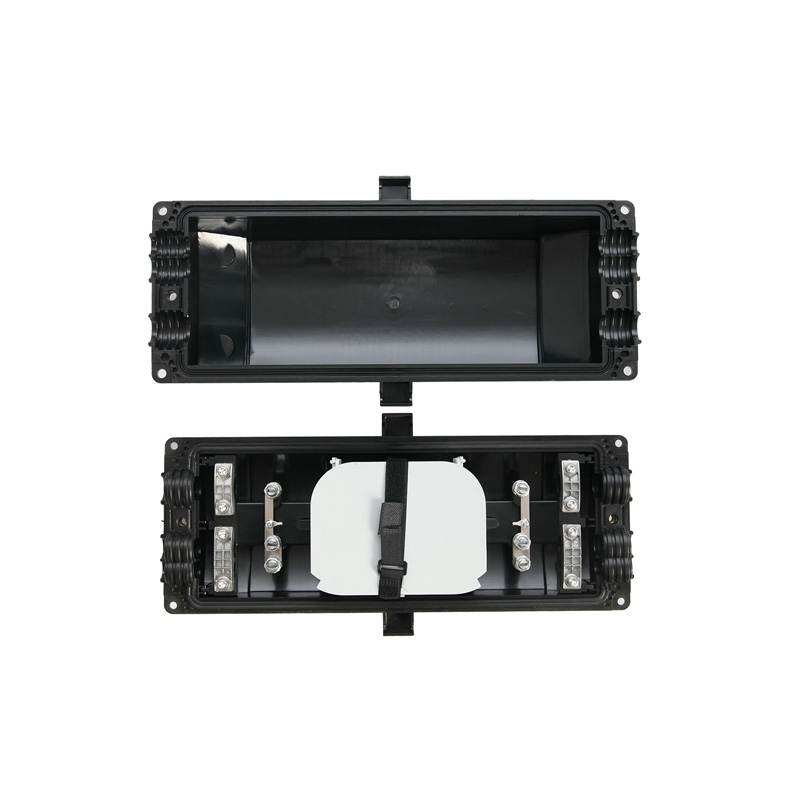

| Outside dimension (LxWxH) | 450x216x160 (mm) |
| Weight (excluding outside box) | 3100g-3800g |
| Number of inlet/outlet ports | 3 (pieces) on each side (total 6 pieces) |
| Diameter of fiber cable | Φ8 —Φ23 (mm) |
| Capacity of FOSC | Bunchy: 12—288 (Cores) Ribbon: max. 432(Cores) |
1. Scope of application:
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.
2. Packing situation:
| Model number | Big box size (CM) | Qty | Weight (KG) | Remarks |
| GJS-J | 47*45*50.5 | 6 pieces | 22.5 | 288 core |
