| Outside dimension (LxWxH) | 450x216x110 (mm) |
| Weight (excluding outside box) | 2750g-3200g |
| Number of inlet/outlet ports | 4 (pieces) on each side (total 8 pieces) |
| Diameter of fiber cable | Φ8—Φ23 (mm) |
| Capacity of FOSC | Bunchy: 6—96 (Cores) Ribbon: max. 216 (Cores) |
1. Scope of application:

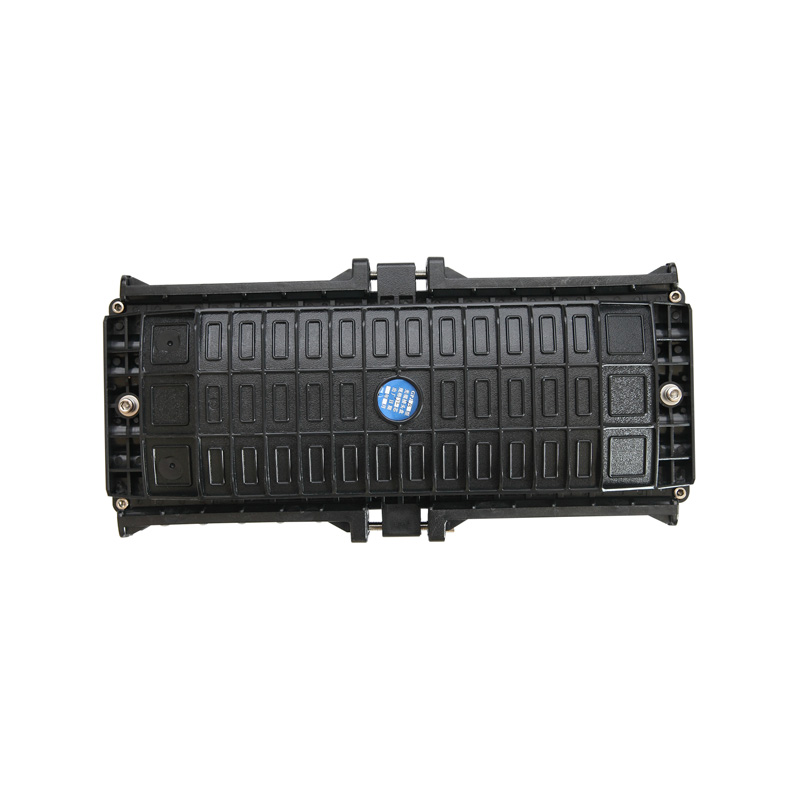

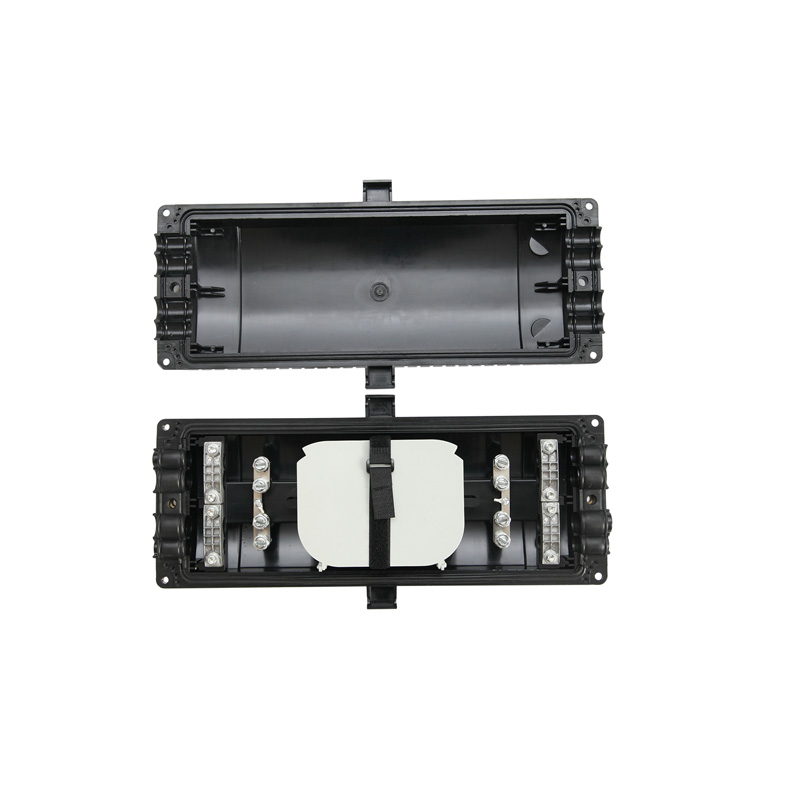

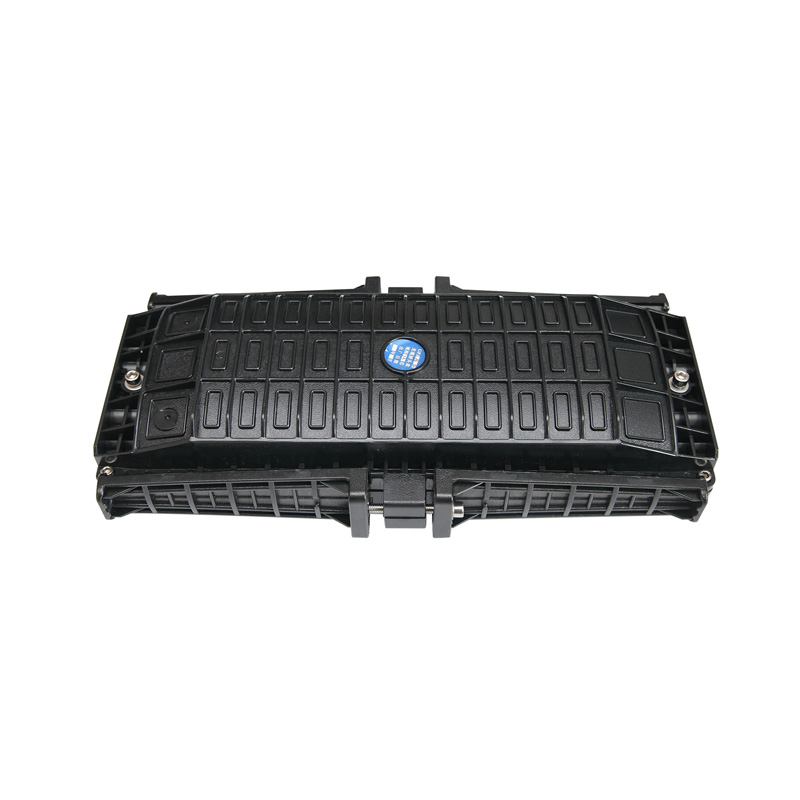

This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting and wall-mounting in duct and handhole. The ambient temperature ranges from -40 to +65℃.
2. Packing situation:
| Model number | Big box size (CM) | Qty | Weight (KG) | Remarks |
| GJS-B | 66.5*47*50 | Pack of 10 | 33 |
|
