| Outside dimension (Height x Diameter) | 540mm×205mm |
| Weight (excluding outside box) | 3000 g— 3600g |
| Number of inlet/out ports | 4 pieces in general |
| Diameter of fiber cable | Φ8mm～Φ36mm |
| Capacity of FOSC | Bunchy:24-96 (cores), Ribbon: up to 288 (cores) |
1. Scope of application:

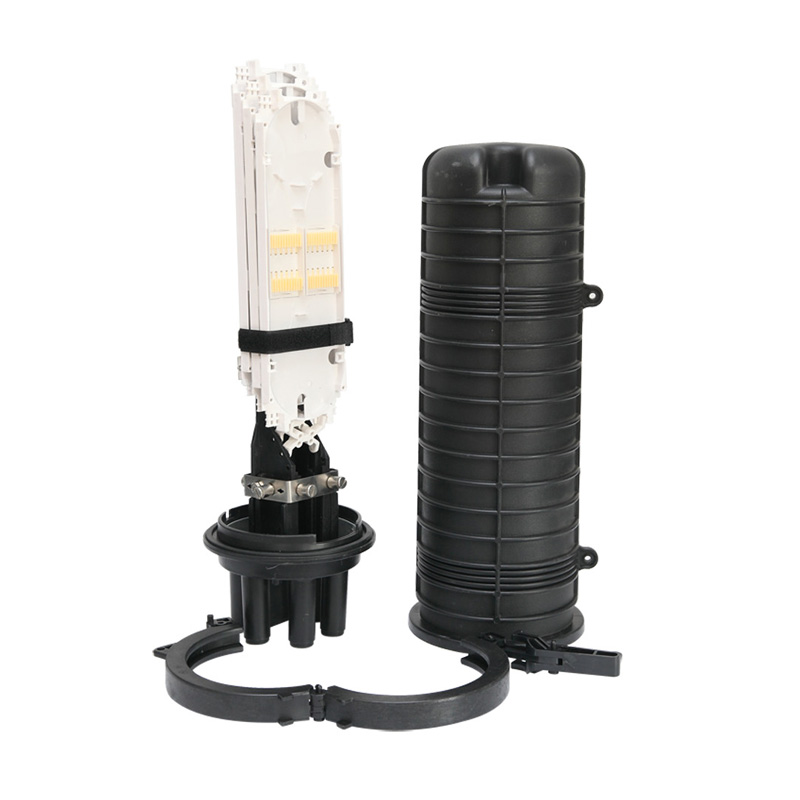

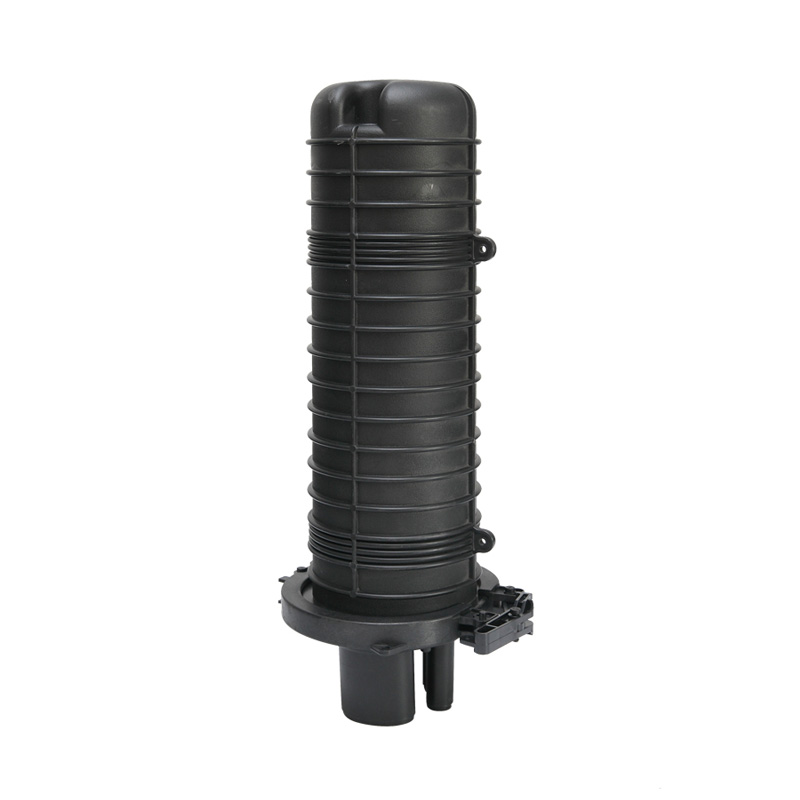

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40 to 65℃.
2. Packing situation:
| Model number | Big box size (CM) | Qty | Weight (KG) | Remarks |
| GJS-T-1 | 72*42*57 | 6 pieces |
|
|
