| Outside dimension (Height x Diameter) | 410mm×190mm |
| Weight (excluding outside box) | 2300 g— 2500g |
| Number of inlet/out ports | 5 pieces in general |
| Diameter of fiber cable | Φ8mm～Φ25 mm |
| Capacity of FOSC | Bunchy: 6-96 (cores), Ribbon: up to 144 (cores) |
1. Scope of application:

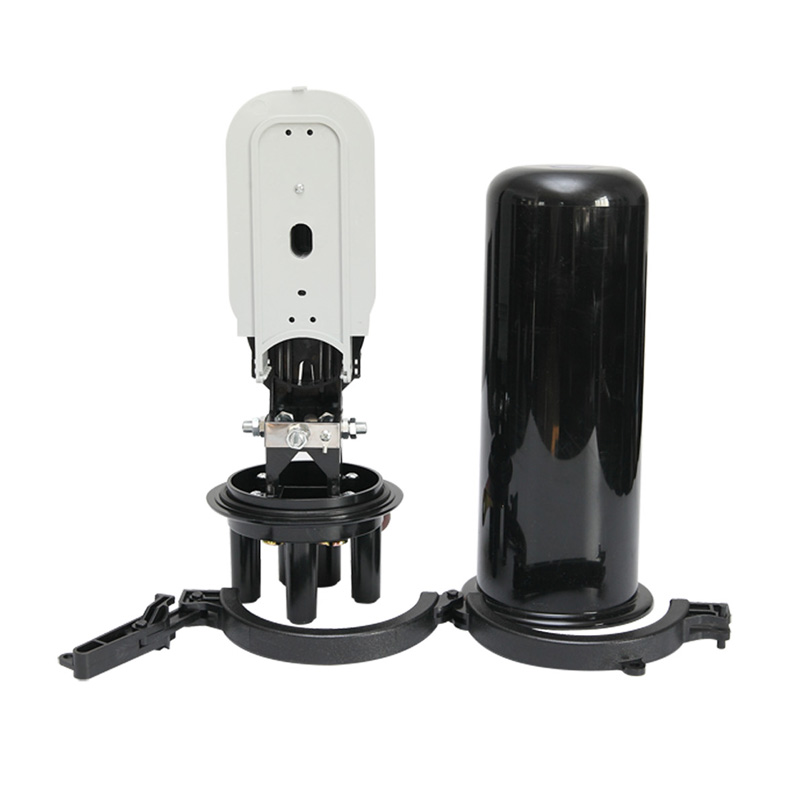

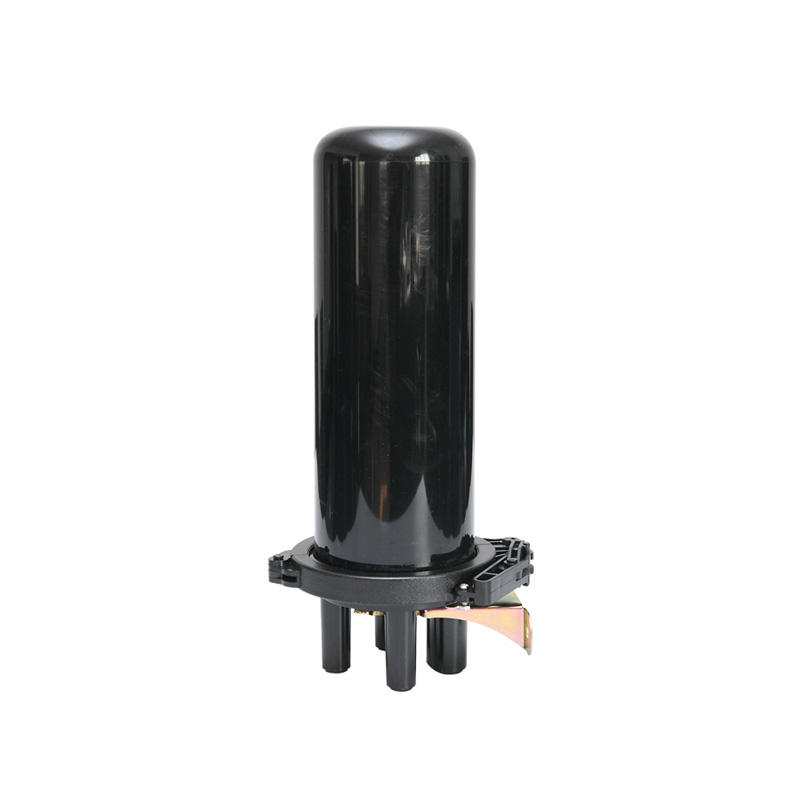

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from –40℃ to +65℃.
2. Packing situation:
| Model number | Big box size (CM) | Qty | Weight (KG) | Remarks |
| GJS-P | 88.5*42*48 | Pack of 10 | 25 |
|
