| Outside dimension (Height x Diameter) | 455mm×220mm |
| Weight (excluding outside box) | 3300g—4200g |
| Number of inlet/outlet ports | 6 pieces |
| Diameter of fiber cable | Φ8mm～Φ21 mm |
| Capacity of FOSC | Bunchy: 12-240 (cores), Ribbon: up to 576 (cores) |
1. Scope of application:

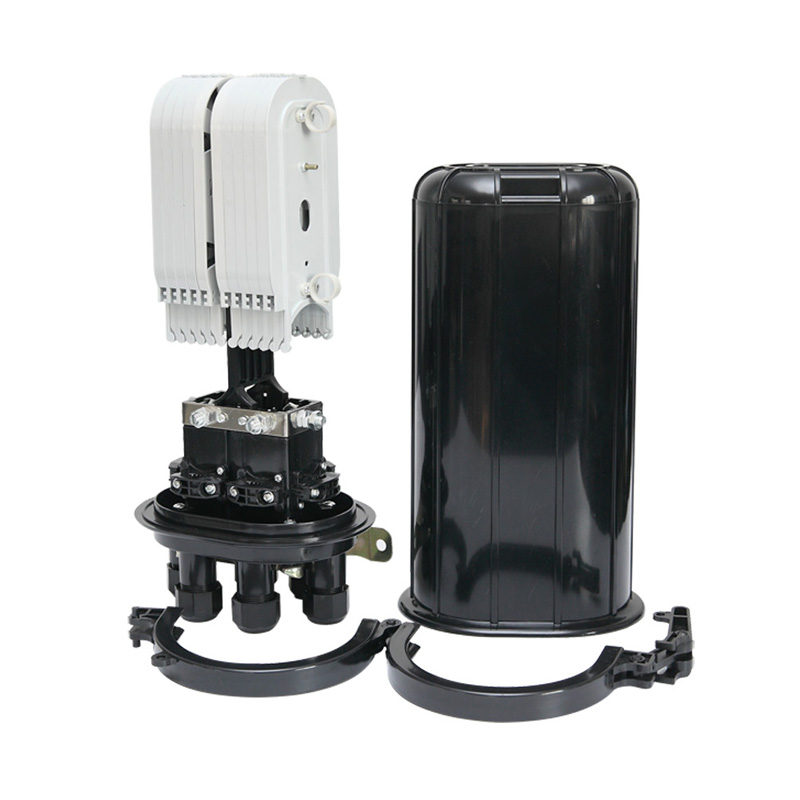

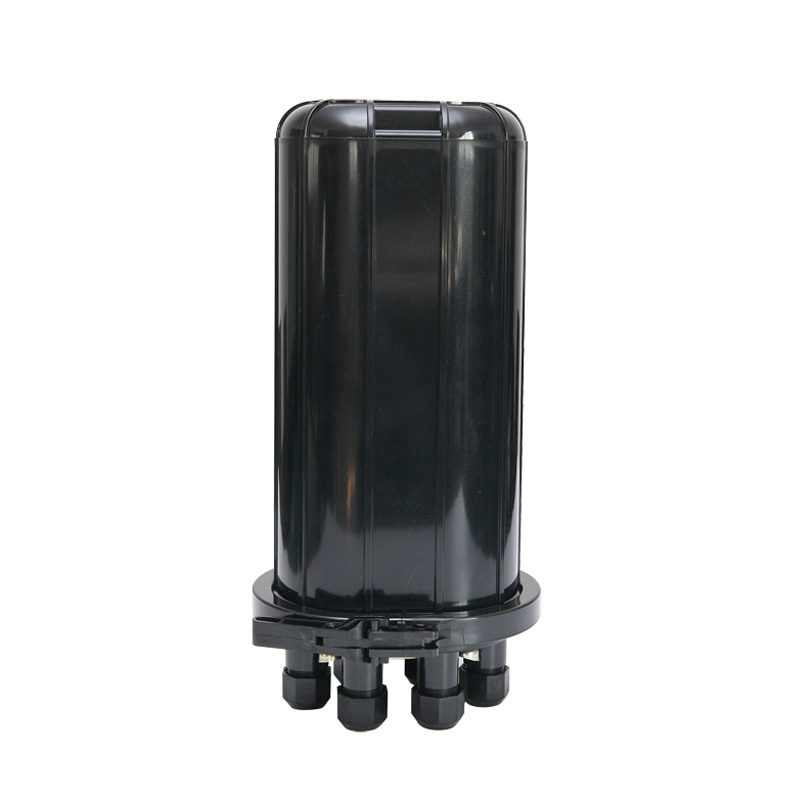

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40 to 65℃.
2. Packing situation:
| Model number | Big box size (CM) | Qty | Weight (KG) | Remarks |
| GJS-F | 66.5*49.5*49 | 6 pieces | 25.4 |
|
